S202 Quality Report

Overall Quality Score

The project needs focused structural attention. The most important findings should be planned explicitly instead of being handled opportunistically.

59of 100Needs Attention

Assessment Drivers

Project size is medium-sized with an average dependency density of 1.6 internal dependency edge(s) per class.
Package distribution is concentrated: the largest package contains 70 class(es), about 9% of the codebase.
Structural anomaly pressure is visible through 56 layered violation(s), 1 package cycle(s), and 10 class cycle(s).

Recommended Focus

Review the largest packages first; they are likely to dominate change cost and ownership.
Prioritize the highest-scoring package hierarchy violations and remove upward dependencies.
Use the generated cycle screenshots to identify stable cut points for package and class tangles.

Metric	Value
Source kind	GO
Languages	Unknown
Build systems	Unknown
S202 version	dev
Classes	763
Packages	57
Modules	0
Interfaces	82
Exported packages	0
S202 component packages	0
S202 API packages	0

Bucket	Packages
0	2
1-2	23
3-5	14
6-10	6
11-25	9
>25	12

Metric	Value
Band	Risk
Fat	0.16
Tangled	0.03
Classes	763
Internal dependencies	1,204
Dependencies inside class cycles	39
Layered violations	56
Package cycles	1
Class cycles	10
Component violations	0

Architecture Findings

Finding	Source scope	Target scope	Kind	Violations	Back edges	Score
package-violation-9	etcdserver.api.v3rpc	etcdserver	UPWARD	11	0	146

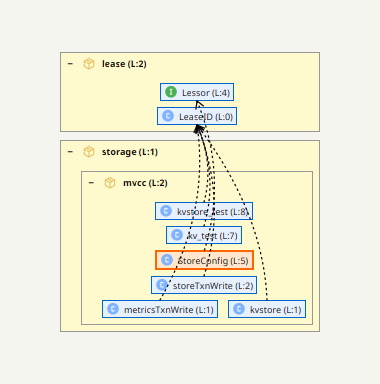

package-violation-17	storage.mvcc	lease	UPWARD	9	0	123

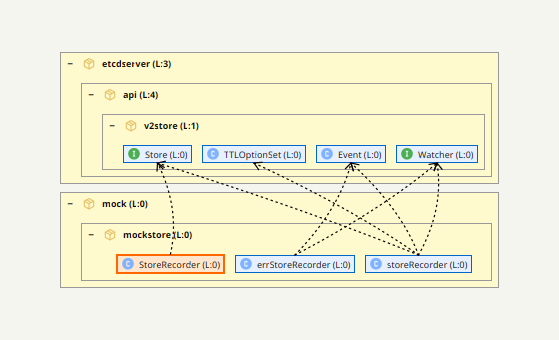

package-violation-10	mock.mockstore	etcdserver.api.v2store	UPWARD	8	0	104
package-violation-8	etcdserver.api.v3client	proxy.grpcproxy.adapter	UPWARD	6	0	81

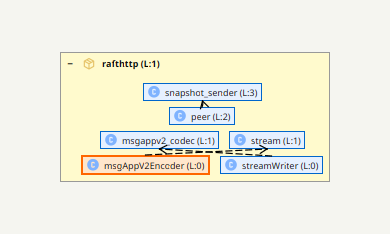

package-violation-5	etcdserver.api.rafthttp	etcdserver.api.rafthttp	UPWARD	3	3	63
package-violation-3	etcdserver	etcdserver	UPWARD	2	2	39

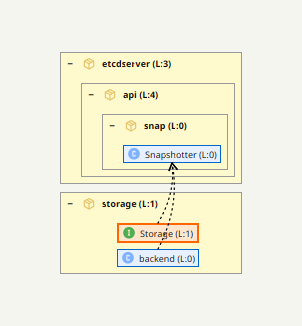

package-violation-12	storage	etcdserver.api.snap	UPWARD	2	0	29
package-violation-1	embed	embed	UPWARD	1	1	21
package-violation-2	etcdmain	etcdmain	UPWARD	1	1	21
package-violation-4	etcdserver.api.membership	etcdserver.api.membership	UPWARD	1	1	21

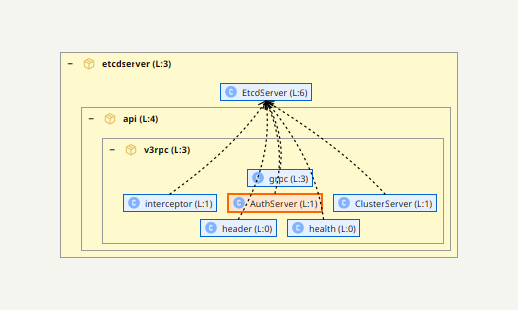

Layered violation scope: etcdserver.api.v3rpc -> etcdserver, 11 edge(s).

Cycle Findings

Package Cycles

Finding	Members	Internal edges	Method/weight	Score
package-cycle-1	2	2	46	76

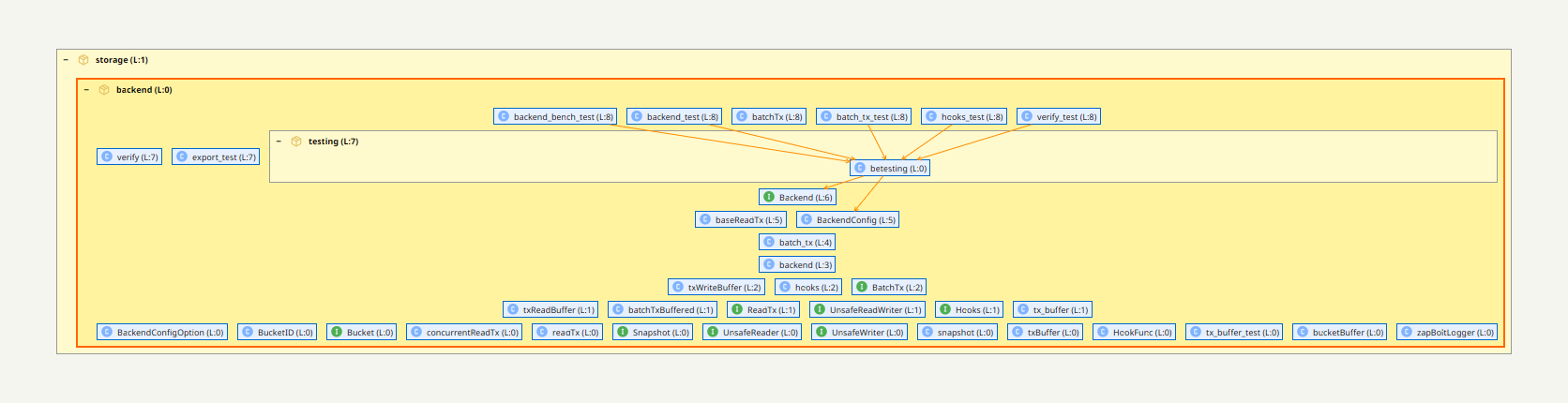

Package cycle #1: 2 package(s), 2 internal edge(s).

Class Cycles

Finding	Members	Internal edges	Method/weight	Score
class-cycle-12	5	8	11	101
class-cycle-2	5	7	12	97
class-cycle-11	4	4	4	64
class-cycle-6	3	4	7	57
class-cycle-10	2	2	5	35
class-cycle-8	2	2	3	33
class-cycle-4	2	2	3	33
class-cycle-1	2	2	2	32
class-cycle-7	2	2	2	32
class-cycle-3	2	2	2	32

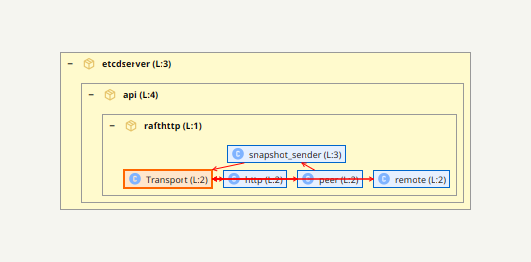

Class cycle #12: 5 class(s), 8 internal edge(s).

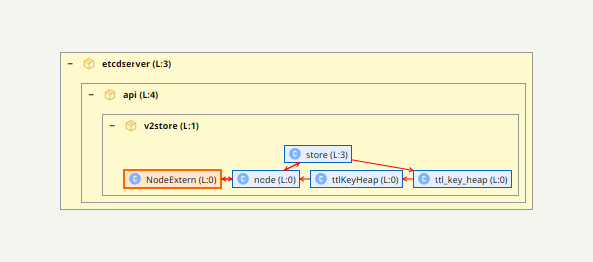

Class cycle #2: 5 class(s), 7 internal edge(s).

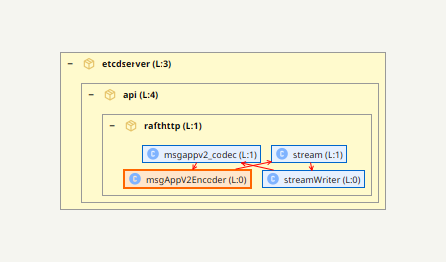

Class cycle #11: 4 class(s), 4 internal edge(s).

Class cycle #6: 3 class(s), 4 internal edge(s).

Class cycle #10: 2 class(s), 2 internal edge(s).

Class cycle #8: 2 class(s), 2 internal edge(s).

Class cycle #4: 2 class(s), 2 internal edge(s).

Class cycle #1: 2 class(s), 2 internal edge(s).

Class cycle #7: 2 class(s), 2 internal edge(s).

Class cycle #3: 2 class(s), 2 internal edge(s).

Evidence	Warnings
No entries

Appendix

Layout Invariants

Metric	Value
Packages	57
Classes	763
Dependencies	1204
Max level	21
Invariant findings	0

Layered Violation Samples

Source	Target	Back edge
embed.serveCtx	embed.Etcd	true
etcdmain.main	etcdmain.etcd	true
etcdserver.adapters	etcdserver.EtcdServer	true
etcdserver.api.membership.membership_test	etcdserver.api.membership.cluster_test	true
etcdserver.api.rafthttp.msgAppV2Encoder	etcdserver.api.rafthttp.stream	true
etcdserver.api.rafthttp.peer	etcdserver.api.rafthttp.snapshot_sender	true
etcdserver.api.rafthttp.streamWriter	etcdserver.api.rafthttp.msgappv2_codec	true
etcdserver.api.v2store.node	etcdserver.api.v2store.store	true

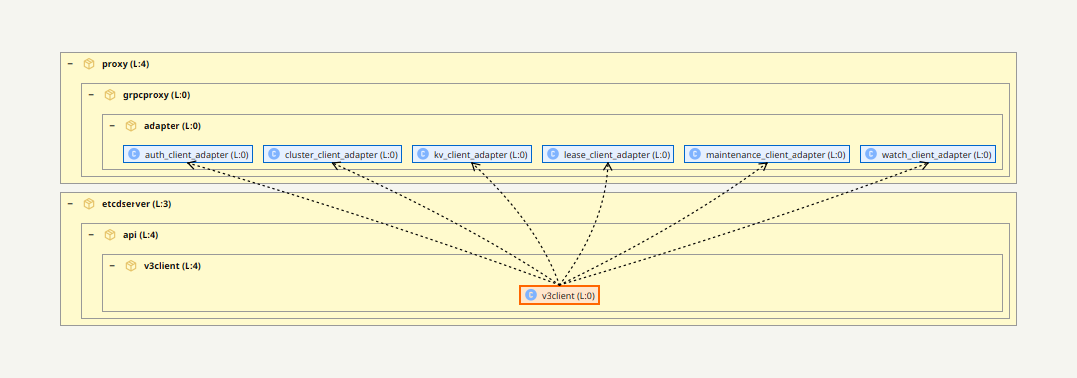

etcdserver.api.v3client.v3client	etcdserver.EtcdServer	false
etcdserver.api.v3client.v3client	proxy.grpcproxy.adapter.auth_client_adapter	false
etcdserver.api.v3client.v3client	proxy.grpcproxy.adapter.cluster_client_adapter	false
etcdserver.api.v3client.v3client	proxy.grpcproxy.adapter.kv_client_adapter	false
etcdserver.api.v3client.v3client	proxy.grpcproxy.adapter.lease_client_adapter	false
etcdserver.api.v3client.v3client	proxy.grpcproxy.adapter.maintenance_client_adapter	false
etcdserver.api.v3client.v3client	proxy.grpcproxy.adapter.watch_client_adapter	false
etcdserver.api.v3rpc.AuthServer	etcdserver.EtcdServer	false
etcdserver.api.v3rpc.ClusterServer	etcdserver.EtcdServer	false
etcdserver.api.v3rpc.grpc	etcdserver.EtcdServer	false
etcdserver.api.v3rpc.header	etcdserver.EtcdServer	false
etcdserver.api.v3rpc.health	etcdserver.EtcdServer	false
etcdserver.api.v3rpc.interceptor	etcdserver.EtcdServer	false
etcdserver.api.v3rpc.key	etcdserver.EtcdServer	false
etcdserver.api.v3rpc.lease	etcdserver.EtcdServer	false
etcdserver.api.v3rpc.maintenance	etcdserver.EtcdServer	false
etcdserver.api.v3rpc.quota	etcdserver.EtcdServer	false
etcdserver.api.v3rpc.watch	etcdserver.EtcdServer	false
etcdserver.corrupt	etcdserver.EtcdServer	true
mock.mockstore.StoreRecorder	etcdserver.api.v2store.Store	false
mock.mockstore.errStoreRecorder	etcdserver.api.v2store.Event	false
mock.mockstore.errStoreRecorder	etcdserver.api.v2store.Watcher	false
mock.mockstore.storeRecorder	etcdserver.api.v2store.Event	false
mock.mockstore.storeRecorder	etcdserver.api.v2store.Store	false
mock.mockstore.storeRecorder	etcdserver.api.v2store.TTLOptionSet	false
mock.mockstore.storeRecorder	etcdserver.api.v2store.Watcher	false
mock.mockstore.store_recorder	etcdserver.api.v2store.Store	false
storage.BackendHooks	etcdserver.cindex.ConsistentIndexer	false
storage.Storage	etcdserver.api.snap.Snapshotter	false
storage.backend	config.ServerConfig	false
storage.backend	etcdserver.api.snap.Snapshotter	false
storage.backend	storage.BackendHooks	false
storage.backend	storage.schema.cindex	false
storage.mvcc.HashStorage	storage.mvcc.store	true
storage.mvcc.StoreConfig	lease.Lessor	false
storage.mvcc.kv_test	lease.LeaseID	false
storage.mvcc.kvstore	lease.LeaseID	false
storage.mvcc.kvstore_bench_test	etcdserver.cindex.ConsistentIndexer	false
storage.mvcc.kvstore_test	lease.LeaseID	false
storage.mvcc.metricsTxnWrite	lease.LeaseID	false
storage.mvcc.storeTxnWrite	lease.LeaseID	false
storage.mvcc.txnReadWrite	lease.LeaseID	false
